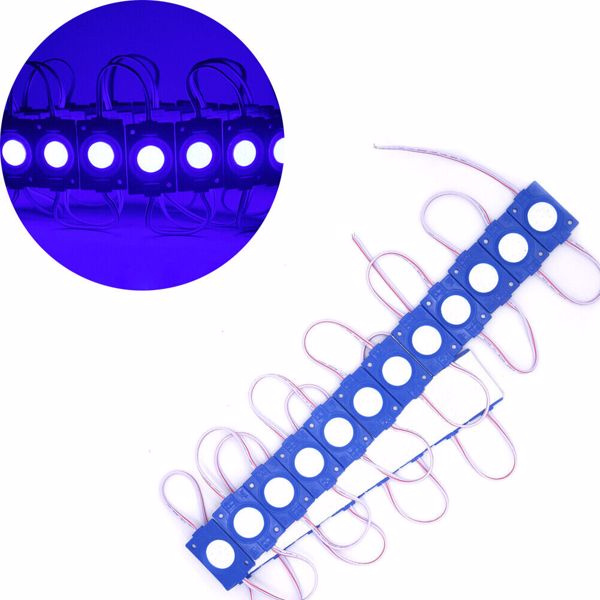

COB Module 1 LED Strip Light IP65 Club Bright Billboard Lamp DC 12V

Description of the connection between modules:

1 :Find the end of the wire, cut a length of cover about 5cm (do not cut the copper wire, only cut the cover)

2 : Connect two strip light , make sure the copper wire are fully contact to each other. (please confirm the negative and positive is right)

3 : Use the insulating tape surrounding the connecting position to prevent the  electric leakage

The Modle Kits Connection:

Step 1: remove the remote battery insulation film, check the remote batter is connected.

Step 2: Connect the LED and mini DC adapter with a screwdriver, attention to positive and negative pole.

Step 3: Separate LED strip. Connect the remote and plug. Finish! Good job.

Features:

Commercial advertisement signs backlight

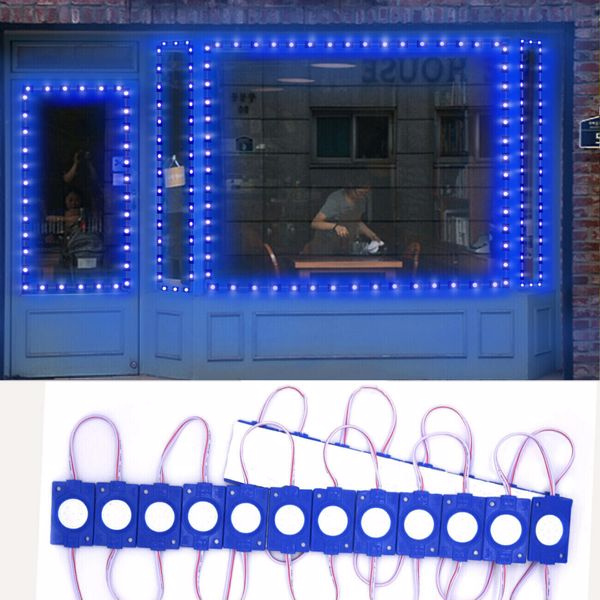

Channel letters backlight store front light

Advertisement light box backlight & decoration sign

Ideal replacement of incandescent and fluorescent lights

LOGO advertising billboard, exposed luminous characters

Suitable for boat cabin & deck lighting, stair, kitchen, courtesy, caravan, garden etc.

Note :

-20pcs led module each string, they can also be cut off on customer's requirement, be sure you cut the connect line between the strip.

- We do not take responsibility for the installation,please let the profession man to install.

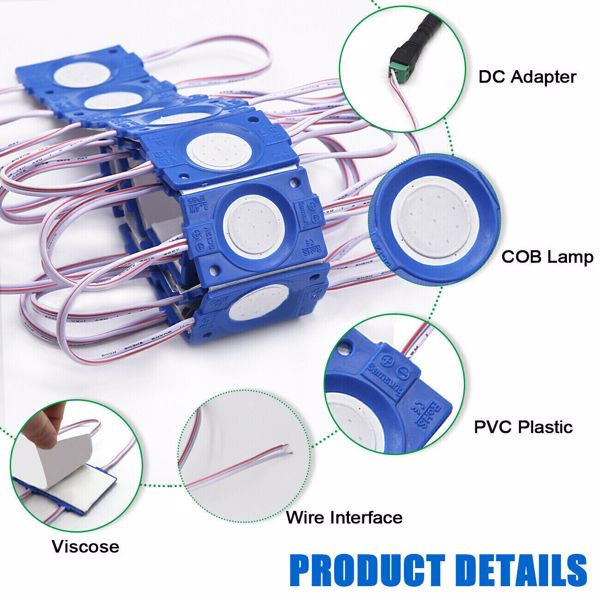

Module Specifications:

Type: COB module

Material: PVC Plastic

Standard Cascade: 20COB one set

Beam angle: 160 degree

Waterproof level: IP65

Working Voltage: DC 12V

Power: 2.4W / each strip

Lumen: 200lm / each strip

Dimension: 43*28*4mm / 1.7 * 1.1 * 0.2 inch (each strip)

Total length of each module set with extension wire: 3m / 10ft

Optional color: As picture shows

Working Temperature: -20~60℃

Note:

-Please allow 1-3cm(0.4-1.2inch) differs due to manual measurement.

-Due to the different display and different light, the picture may not reflect the actual color of the item. Please understand.

Package included:

1 x COB 1 LED module
